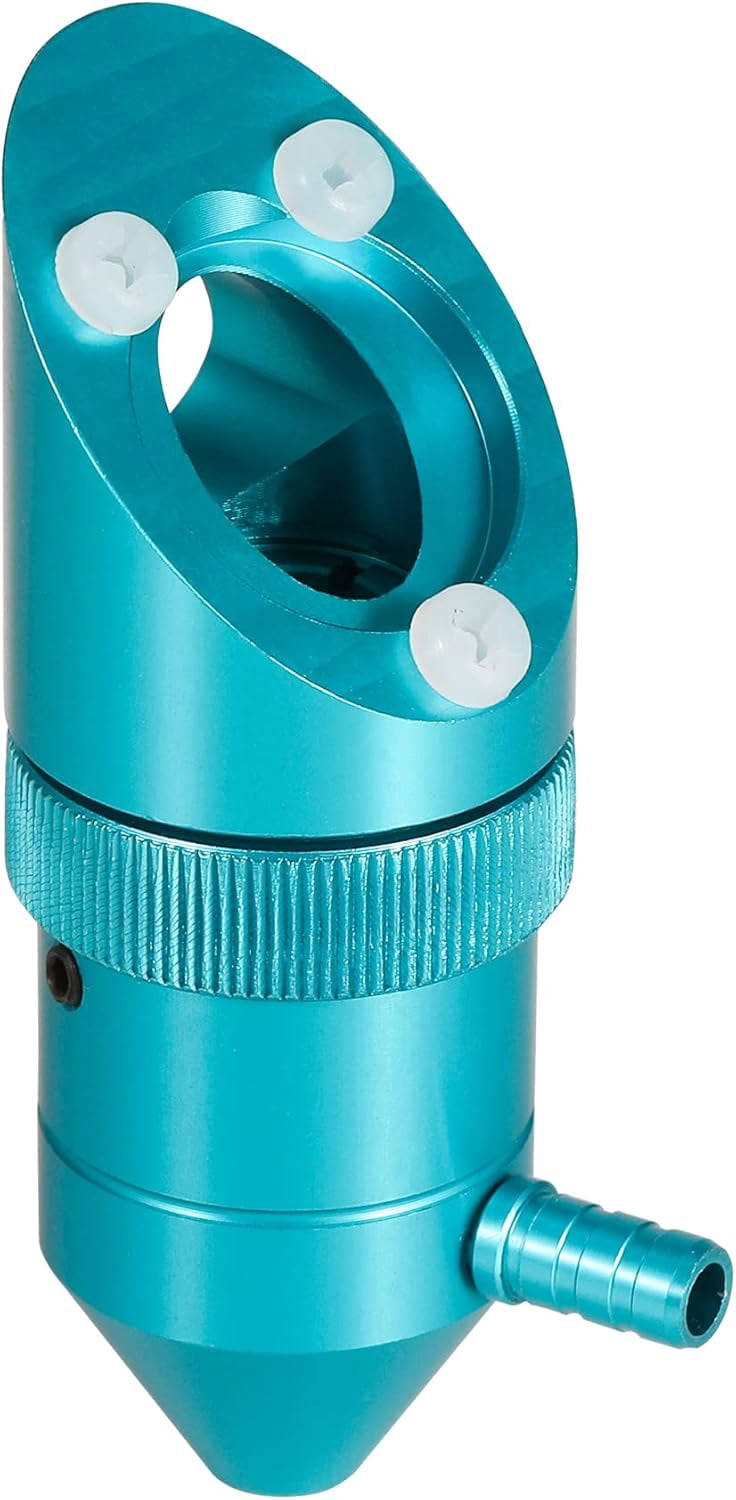

ABCISI 12mm/15mm/18mm/ FL50.8 & 16mm FL25.4 Laser Head With Air Assist For K40 Laser Engraver Cutter, Improves the Cut Quality and Preserves the Machine

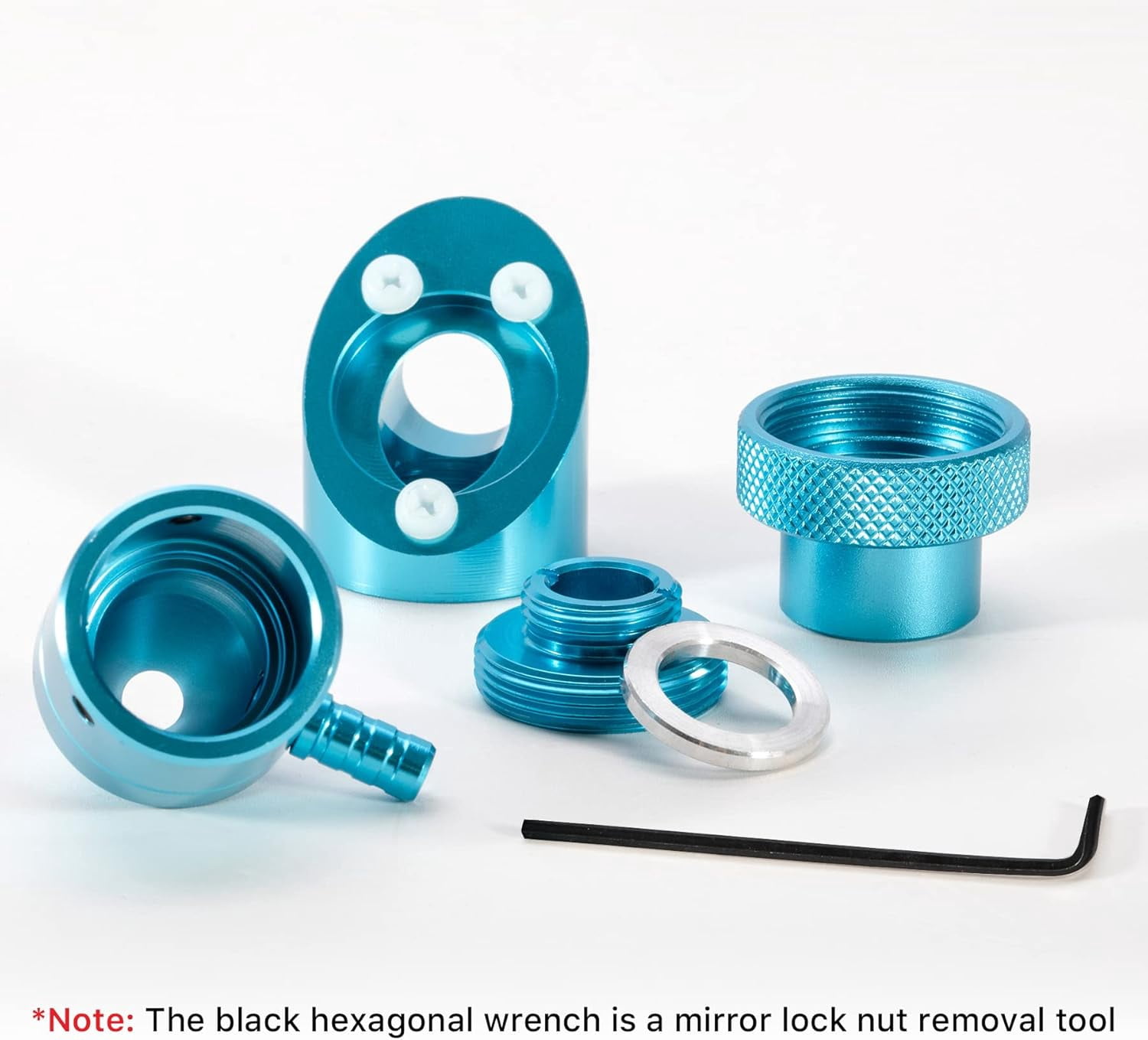

<h2>Product description<br><br></h2> <p></p> <h2>CO2 Engraving <br><br></h2> <h1>K40 Cutter Head <br><br></h1> <p>Support for three kind focus lens : D12 FL50.8 / D18 FL50.8 /D16 FL25.4 <br><br></p> <p><br><br>K40 Cutter</p> <h3>Product Structure <br><br></h3> <p>The 12mm FL50.8mm focusing lens needs to be installed with a ring <br><br></p> <p>When install the 18mm FL50.8mm focal lens ,pls take away the ring <br><br></p> <p>Please pay attention to the installation positions of different diameter focusing lenses <br><br></p> <p>Note: Focus lens and mirrors are NOT included <br><br></p> <p><br><br>K40 Cutter</p> <h3>Product Structure <br><br></h3> <p>Aluminum Material With Blue Oxide Coating;Air plug outer diameter: 5.0mm <br><br></p> <p>This k40 cutter head can work with K40 engraving machine ,when the fixed bracket to which the moving axis of the cutter is connected is M22 or M23;Pls keep in mind that not all K40 lasers are the same bracketing and setup <br><br></p> <p><br><br>K40 Cutter Head</p> <h3>Attention <br><br></h3> <p>The black hexagonal wrench is a mirror lock nut removal tool <br><br></p> <p><br><br></p> <h3>Related products <br><br></h3> <p></p> <p>Focus Lens <br><br></p> <p><br><br></p> <p>Si Mirrors <br><br></p> <p><br><br></p> <p>CO2 Glass Tube <br><br></p> <p><br><br></p> <p>Multi-Diameter <br><br></p> <p>D12mm-D25mm,FL38.1-127mm <br><br></p> <p>Multi-Model-Diameter <br><br></p> <p>D19.05-38.1 <br><br></p> <p>Multi-Power <br><br></p> <p>35W-180W Laser tube <br><br></p> <p></p> <p>Shipping <br><br></p> <p>From USA Amazon Warehourse <br><br></p> <p>Shipping <br><br></p> <p>From USA Amazon Warehourse <br><br></p> <p>Shipping <br><br></p> <p>From USA Amazon Warehourse <br><br></p> <p><br><br></p> <ul> <li> <p>How to place the lens？ <br><br></p> <p>Please pay attention to the installation positions of different diameter focusing lenses , install D12 lens needs to be installed with a ring, and when install the 18mm FL50.8mm focal lens ,pls take away the ring, <br><br></p> <br><br></li> <li> <p>Focus lens and mirrors are included? <br><br></p> <p>NO ,Focus lens and mirrors are NOT included, if you need the set you cloud take a look of these ASIN B0B4NTQZYN / B0B4NV3QGL / B0B4NWXMVK / B0B4NYVCKM <br><br></p> <br><br></li> <li> <p>Where is he adapter ring shown in the picture ? <br><br></p> <p>The Ring is not packaged as a separate piece,Pls take a notice to the screwdriver slots in the middle piece ,You will discover that the 12mm adapter ring was installed,It was not visible unless the head is disassembled. <br><br></p> <br><br></li> <li> <p>Pls keep in mind that not all K40 lasers are the same bracketing and setup <br><br></p> <p>This k40 cutter head can work with K40 engraving machine ,when the fixed bracket to which the moving axis of the cutter is connected is M22 or M23 <br><br></p> <br><br></li> </ul> <p><br><br></p>

• Support focal lens: D12 FL50.8mm / D16 FL25.4mm / D18 FL50.8mm focus lens, Only support this three kind lens, can not install dia.20mm focus lens ;The mount is also capable of Dia. 20mm reflective mirror
• Excellent K40 Accessories: This nozzle is one of the excellent enhancements to a k40 laser, It fits right on the cutter head, and improves the cut quality as well as preserves the machine.

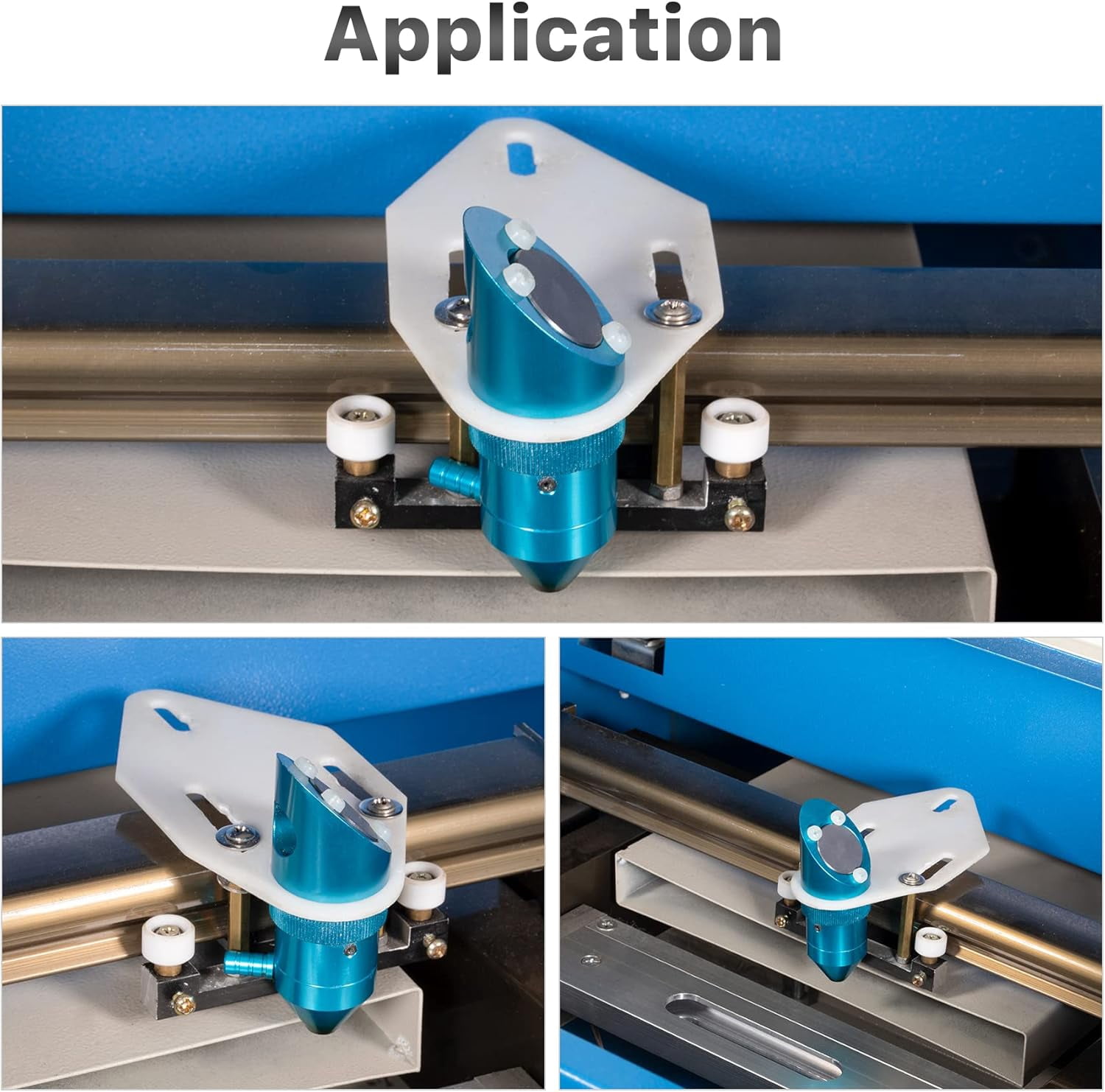

• Application: This k40 cutter head can work with K40 engraving machine ,when the fixed bracket to which the moving axis of the cutter is connected is M22 or M23;Pls keep in mind that not all K40 lasers are the same bracketing and setup.
• Suggestion: Air-assist connector position ,Suggest 5X8 silicon fles tube (Inner dia.5mm,outer dia.8mm ),since the outer diameter of the air auxiliary connector is 5.3mm

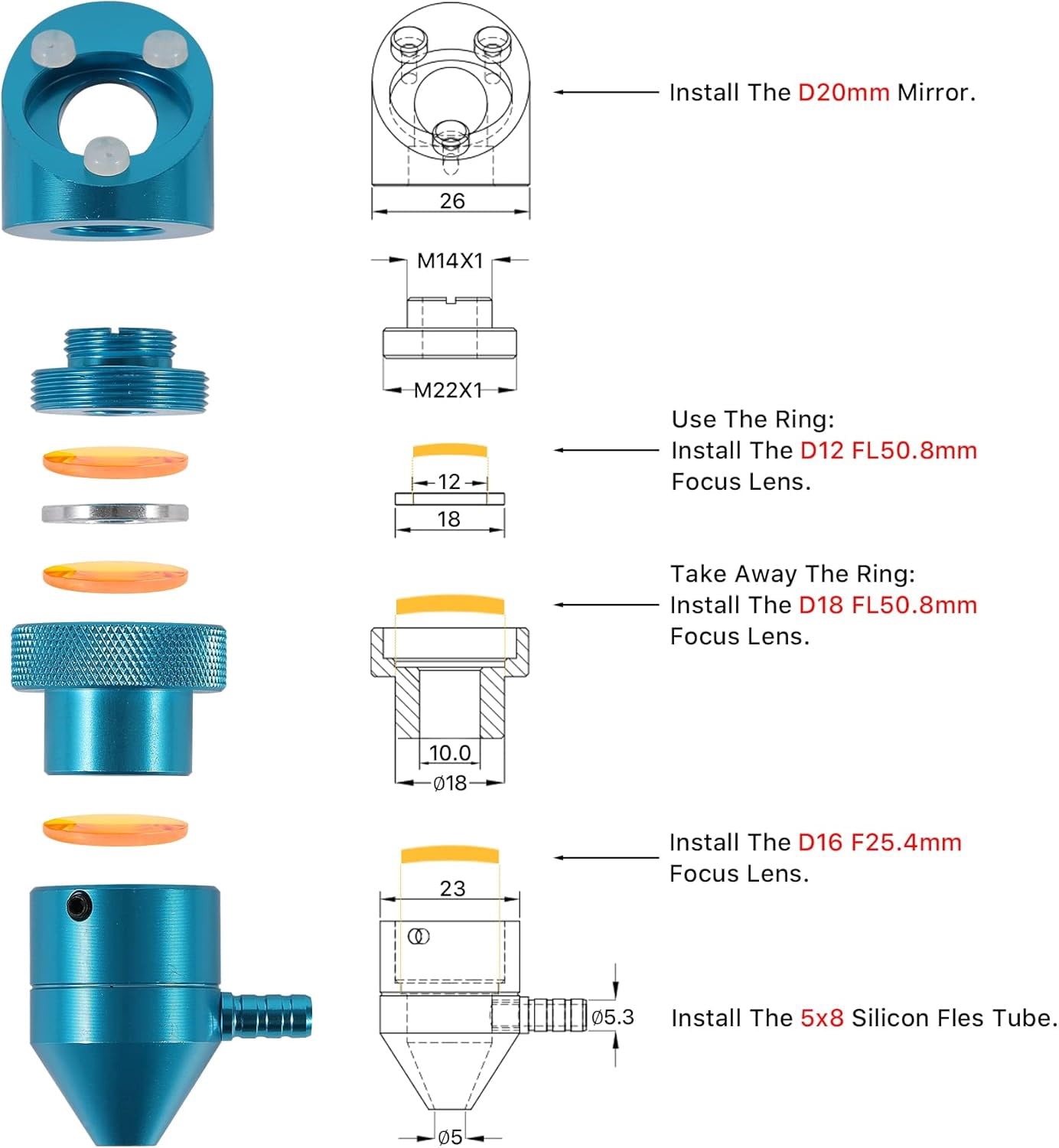

• Easy Installation: This is a plug and play system if the item can meet your K40 machine; If the air nipple and screw hole not lined up,Please align and screw it,it will be fine;The way to place the different lens: use the ring,install the dia.12 FL50.8mm focus lens; Take away the ring,install the dia.18 FL50.8mm focus lens;install the dia.12 FL50.8mm focus lens(Pls take a look of the dimension picture)
